World-class high-frequency technology and high flexibility make our radio detection products unique in this quality. IZT’s range of receiver products covers all professional areas from communications intelligence, test and measurement up to ITU-compliant spectrum monitoring and automotive applications.

Our digital wideband receivers provide the right solution for your application – either rack-based, rugged or mobile.

RECEIVERS PRODUCTS

IZT RF Surveillance System

Versatile Radio Monitoring Solution

The IZT RF Surveillance System is a powerful, modern system for massive parallel intercept, recording, acquisition, classification and content production of signals in the radio spectrum. It is suitable for terrestrial and satellite signals and supports different decoder packages.

Automated HF/VHF/UHF surveillance
Channel utilization analysis
Supports all IZT receivers
Continuous buffering and recording
Signal acquisition and classification
Content production
Post-processing

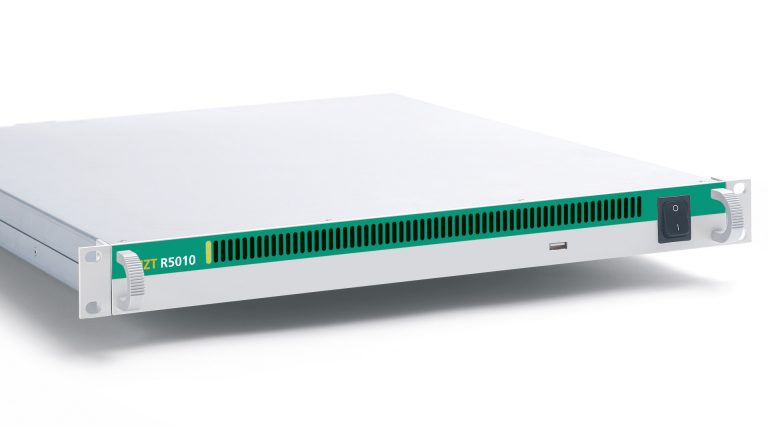

IZT R5010

120 MHz Wideband Receiver

The IZT R5010 is a wide-band receiver with frequency range up to 6 GHz, up to 120 MHz instantaneous bandwidth and powerful internal signal processing. Typical applications are COMINT Systems, satellite monitoring, wide-band RF recorders or quality measurements in mobile communication networks.

Highest signal quality in the frequency range up to 6 GHz
Frequency extensions possible
Up to 120 MHz instantaneous bandwidth
Six independent digital downconverters
Real-time spectrum calculation
Large internal buffer memory

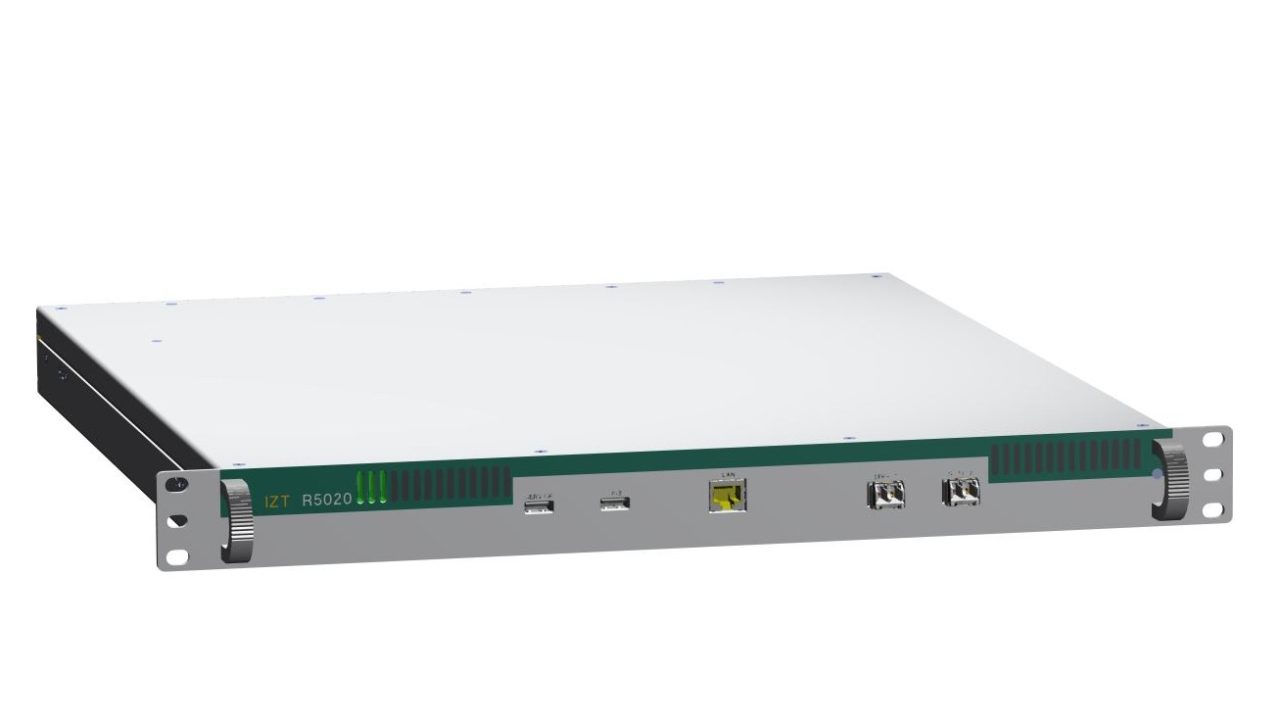

IZT R5020

HF Receiver

The IZT R5020 is a broadband receiver with a patented preselector filter bank. It is designed to digitize the complete HF band from 9 kHz to 30 MHz. It can be used with with the IZT Signal Suite software or with 3rd party software through an SDK.

Highest signal quality in the frequency range up to 30 MHz
Ultimate linearity and full HF-band coverage at the same time
Passive input channelizer minimizes second order intermodulation
Twelve AD Converters

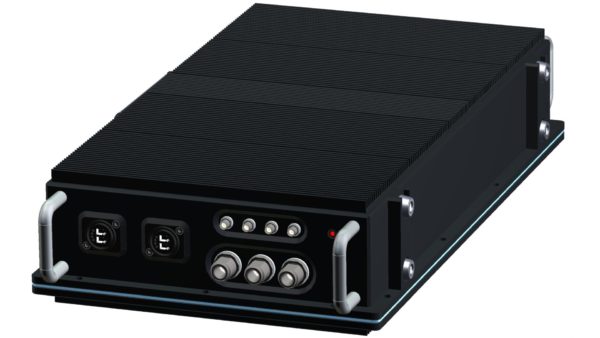

IZT R5040

Rugged Wideband Receiver

The IZT R5040 is a wideband receiver with a frequency range up to 18 GHz, up to 120 MHz instantaneous bandwidth and powerful internal signal processing. Typical applications are COMINT Systems, satellite monitoring, broadband RF recorders or quality measurements in mobile communication networks.

Highest signal quality in the frequency range up to 18 GHz
Up to 120 MHz instantaneous bandwidth
Six independent digital downconverters
Up to 64 narrow-band DDCs
Real-time spectrum calculation
Large internal buffer memory
Suitable for outdoor installation
Different cooling methods in harsh environments

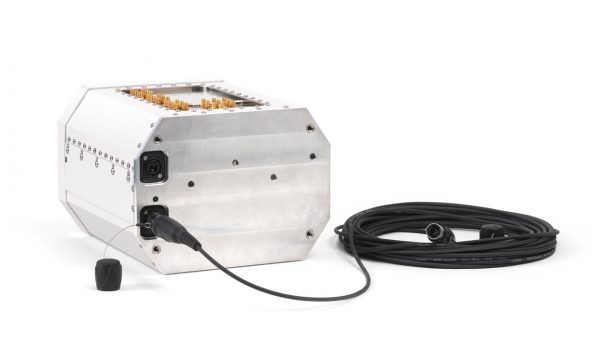

IZT R5506

Remote Direction Finding Sensor

The mobile sensor IZT R5506 samples signals synchronously from all antenna elements in a specific frequency band eliminating the need for additional RF switches. This feature secures short detection times and simultaneous monitoring of one or more channels with arbitrary center frequencies and bandwidths.

High-performance sensor
Up to six synchronous channels
For outdoor installation
Powerful signal processing

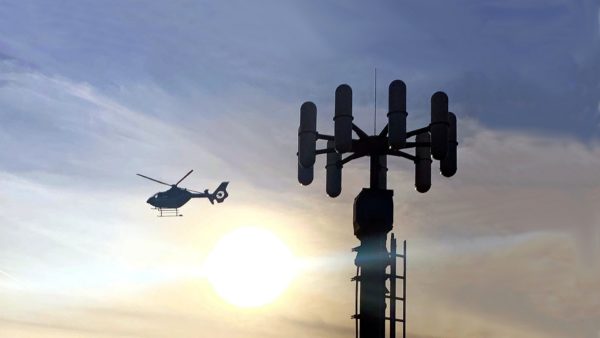

IZT R5509

VHF Radio Direction Finder

The IZT R5509 is a highly accurate and reliable radio direction finding (DF) system that is designed for high resolution VHF direction estimation. The DF system is intended to support the work of Air Traffic Control (ATC) operators by localizing and identifying the transmitting aircraft.

Accurate VHF Radio Direction Finder
Simultaneous processing of more than 35 channels
Frequency range 20 MHz to 520 MHz
Robust design: up to wind speeds of 200 km/h under icing conditions
Perfect for applications in air traffic control (ATC)

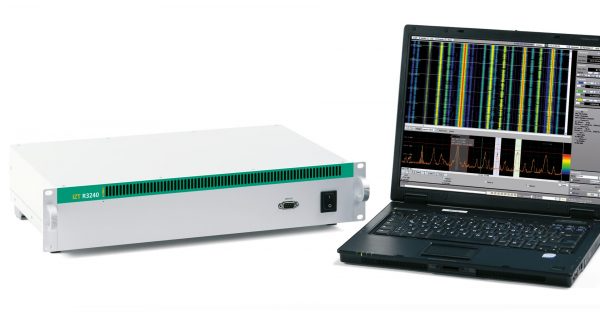

IZT R3000 Receiver Family

Digital Wideband Receiver

The IZT R3000 family is particularly suitable for signal search and analysis, spectrum monitoring in line with ITU recommendations and communication intelligence. It allows to analyze and demodulate modern digital wideband signals as well as to track or intercept frequency agile systems over a wide range of bandwidths.

Radio monitoring of broadcast stations
ITU-R spectrum monitoring measurements
Jammer location finding
Spectrum allocation analysis
Search, intercept and emitter location
Threat recognition
Offline processing and technical analysis

IZT R3301

Portable Monitoring Receiver and RF Recorder

The IZT R3301 is a portable receiver with an integrated server for data recording. The receiver is optimized for recording of RF signals in frequently changing environments.

Portable HF-VUHF-SHF receiver
Frequency range 9 kHz – 3 GHz
Recording of 25 MHz RF bandwidth
Integrated 4 TB RAID storage and GPS receiver
Widerange AC/DC supply with backup battery
Compact and rugged design
Extremely low RF emissions

IZT R3302

Portable Monitoring Receiver and RF Recorder

The IZT R3302 RF sensor is a portable receiver with built-in sensor controller for running software applications and storing signal data. It is optimized for recording RF signals in mobile and portable applications. The outstanding RF performance and signal processing matches the professional IZT R3000 receiver series.

Portable and rugged design for harsh environments
Excellent RF performance
9 kHz to 18 GHz frequency range
25 MHz real-time bandwidth
Many hours of continuous RF recording
Swappable data storage
Wide range power supply with built-in UPS
Built-in GPS reference time source

IZT R3410 & IZT R3411

Ruggedized Monitoring Receiver and RF Recorder

The compact variant of the sucessfull R3000 series combines a limited weight of under 7 kg with a fanless design suited for harsh environments while maintaining the excellent HF performance and a real-time bandwidth of 25 MHz.

Portable & rugged design for harsh environments
Excellent RF performance
9 kHz to 18 GHz frequency range
25 MHz real-time bandwidth
Many hours of continuous RF recording

IZT R3500

Ultimate Sensor for Intercepting HF Signals

The IZT R3500 HF intercepting receiver offers a highly linear, flexible pre-selector with electronically configurable start and stop frequencies for the most challenging interception of High Frequency (HF) signals.

Unique High Performance Preselector
Exceptional Signal Quality
Ideally Suited for Automated HF Monitoring Systems
Fully Compatible to IZT R3000 Series

IZT R3600

Multichannel Receiver System

The IZT R3600 offers up to five channels with 24 MHz instantaneous bandwidth each and covers the frequency range from 9 kHz to 3 GHz or even 6 GHz. The innovative multichannel receiver system enables users to combine direction finding and monitoring by using free channels as individual monitoring channels.

Scalable multichannel receiver system
Suitable for direction finding (DF)
Combined DF and monitoring possible
Up to 5 channels with 24 MHz instantaneous bandwidth each
Frequency range 9 kHz – 3 GHz / 6 GHz
Internal calibration, synchronization and high stability reference

SATELLITE CHANNEL EMULATORS

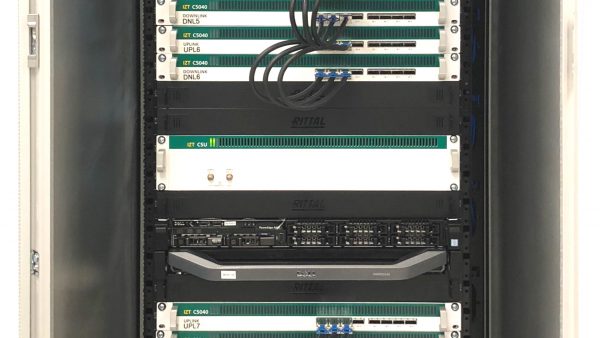

IZT C5040

Satellite Channel Simulator

IZT satellite channel simulators provide a costeffective and time-saving method of simulating complete bidirectional satellite transmission links without the actual satellites being available.

Comprehensive modelling of the satellite channel
Complex operating scenarios for testing transceivers, terminals and satellites
Hand-off simulation for complex satellite constellations
Frequency range up to 3 GHz with a bandwidth of 250 MHz

IZT C7000

Over the Air Research and Testing

IZT GmbH set up a test platform for »Mobile Communication Systems« for Fraunhofer Gesellschaft, the largest European research organization for application-oriented research, as part of the »Facility for Over the Air Research and Testing« (FORTE) test facility.

Accurately reproducible and controllable test environment

Realistic radio channel emulation
Simulation of complex impulse responses of nearly unlimited length
Theoretical and realistic environment emulable
LTE and Cognitive Radio (CR)
Sensor networks
Car-to-X communications

IZT C3040

Satellite Link Emulator

IZT satellite channel simulators provide a costeffective and time-saving method of simulating complete bidirectional satellite transmission links without the actual satellites being available.

Input and output frequency up to 3 GHz
Instantaneous bandwidth of 100 MHz
Simulation of uplink, payload and downlink
Synchronization of multiple IZT C3040 possible

IZT C6000

For synchronous bi-directional satellite Links

The Satellite Link Emulator provides a cost effective and time-saving solution for testing the complete bi-directional transmission path.The state of the art graphic user interface allows to change all parameters of the setup easily.

Bi-directional wideband solutions for up to 600 MHz
Reproducible and complex scenarios
Real time change of parameter
Flexible and scalable Architecture
State of the art GUI
Long term support

IZT DCS3020 (discontinued)

Fading Channel Simulator

The Channel Simulator IZT DCS3020 has been specially designed for simulation of bidirectional satellite links. The large processing power of the IZT DCS3020 also supports fading models applicable to terrestrial wireless links.

slow fading simulation for handheld applications
file streaming for repeatable testing
accurate and realistic carrier-to-noise and level profiles
optional second module

IZT C3080 (discontinued)

Wideband Digital Channel Simulator

The IZT C3080 is a wideband digital channel simulator especially suited for simulating transmissions over satellites. Modern communication systems adapt not only higher frequencies but also wider bandwidths, therefore the IZT C3080 was designed to simulate a bandwidth of up to 680 MHz.

680 MHz of instantenous bandwidth
Flatness of less than ±0.5dB
Group delay less than ±1ns
IMUX / OMUX Filtering
Non linearity simulation (AM/AM and AM/PM)
Phase noise simulation
Thermal noise (AWGN)

SIGNAL GENERATORS

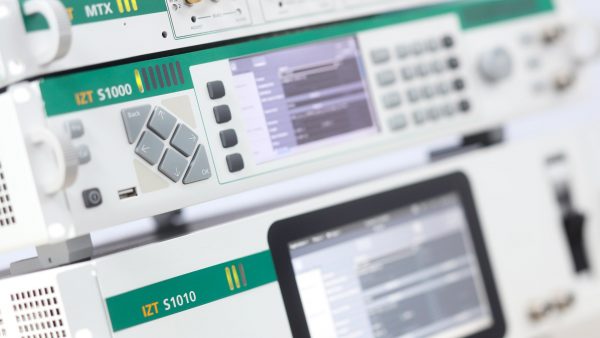

IZT S1000 & IZT S1010

Multi-channel Signal Generator

IZT S1000 and IZT S1010 (model with extended memory) are multi-channel signal generators for the testing of I/Q data, Sirius, XM, HD Radio, AM, FM, DAB/+, DVB-T and DRM/+ radio receivers in the car industry, multimedia equipment, COMINT/SIGINT systems or for the RF environment simulation and operator training.

31 Virtual Signal Generators
Two independent phase synchronous RF outputs
Real-time impairment simulation
Universal ARB function
50 MSps real-time streaming
Easy-to-use compact setup

COMINT Simulator

Real-Time RF Environment Simulation System

The IZT COMINT Simulator is ideal to test complex COMINT & DF Systems and to train operators.This system provides the possibility to test high-resolution stationary and mobile Direction-Finding receivers to determine their accuracy and whether they can correctly detect and interpret all types of radio signals.

Simulating time variant, complex and realistic RF signal
Store and replay artificial and real world signals
Covering the bandwidth of 20 MHz to 3 GHz
Flexible and scalable system

IZT S5000

Multichannel Signal Source for Real-Time RF Environment Simulation

The IZT S5000 can be efficiently applied when ever multiple and accurately synchronized RF test signals are required. If multi-standard receivers are to be tested, the IZT S5000 is a very cost efficient way to generate all required test signals for environment simulation from a single source.

Multi-Standard Test Source
RF Signal Player
COMINT Stimulator
120 MHz Bandwidth
Up to fourteen synchronous outputs
Hundreds of emitters

IZT T1000

Compact Broadcast Modulator

The IZT T1000 can be used to modulate broadcast signals, for example to test receivers during development or in production testing. The broadcast modulator is a good choice for stand-alone operation in fixed or smaller test setups.

Modulator platform for DAB and DAB+
Playback of ETI/EDI files for factory testing
Output power selectable
Seamless switching between any combination of inputs
User-friendly intuitive web GUI
IZT DAB Content Server can be integrated
Optional integrated GNSS receiver for synchronization

IZT S2000 (discontinued)

Signal Generator

The IZT S2000 is a versatile high-performance signal source for developers and manufacturers of multimedia receivers. It supports Sirius Satellite Radio, XM Satellite Radio, DVB-T/H and other standards.

Real-time signal generation
Powerful impairment simulation
Simultaneous generation of two different standards
Up to four RF outputs
Full remote control capabilities
Powerful Arbitrary Waveform Generator

IZT S800E (discontinued)

Signal Generator

The IZT S800E is a cost efficient test signal source for the two SDARS systems Sirius and XM. Its functionality is specifically tailored to the needs of manufacturers of tuner modules and application software development

Generates Sirius or XM Radio signals
Real-time signal generation
Satellite and terrestrial signal
RF output in S-band
Graphical User Interface
Labview driver available as option
Remote control via SCPI-like commands

RECORD & PLAYBACK

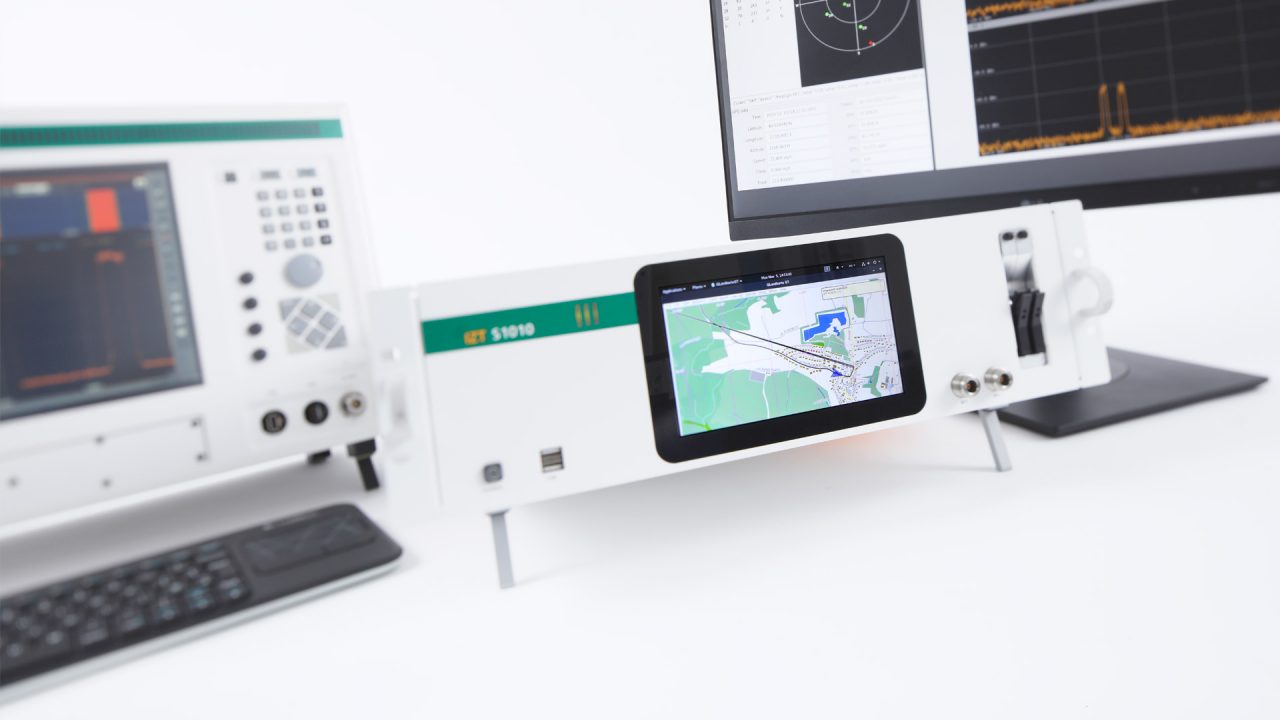

IZT RecPlay

RF Recording and Replay System

IZT RecPlay is a full featured RF recording and replay system using well established and reliable IZT components. The system is able to receive, record and replay up to 25 MHz bandwidth in a frequency range from 9 kHz to 3 GHz.

Frequency range 9 kHz to 3 GHz
Extremely low RF emission
Up to eight diversity or multi-frequency channels
Real-time impairment simulation
Powerful off-line post processing
RF synchroneous GPS NMEA map visualization, video camera & audio capture

IZT Data Processor

Software for Signal Review, Analysis and Post-Processing

IZT Data Processor – the easy way to cut, copy, paste & merge RF signals in time and frequency domains. Review and edit your recorded data offline with the IZT Data Processor software. Enjoy the fast interactive displays of spectra and spectrograms as well as useful metadata such as GPS information.

Map visualization interface
GPS NMEA data output
Video/audio camera replay function
Demodulation plug-ins

IZT R3301

Portable Monitoring Receiver and RF Recorder

The IZT R3301 is a portable receiver with an integrated server for data recording. The receiver is optimized for recording of RF signals in frequently changing environments.

Portable HF-VUHF-SHF receiver
Frequency range 9 kHz – 3 GHz
Recording of 25 MHz RF bandwidth
Integrated 4 TB RAID storage and GPS receiver
Widerange AC/DC supply with backup battery
Compact and rugged design
Extremely low RF emissions

IZT R3302

Portable Monitoring Receiver and RF Recorder

Portable and rugged design for harsh environments
Excellent RF performance
9 kHz to 18 GHz frequency range
25 MHz real-time bandwidth
Many hours of continuous RF recording
Swappable data storage
Wide range power supply with built-in UPS
Built-in GPS reference time source

IZT R3410 & IZT R3411

Ruggedized Monitoring Receiver and RF Recorder

Portable & rugged design for harsh environments
Excellent RF performance
9 kHz to 18 GHz frequency range
25 MHz real-time bandwidth
Many hours of continuous RF recording

DIGITAL BROADCASTING

IZT DAB ContentServer

Digital Radio Multiplexer System

The IZT DAB ContentServer is a professional system for encoding and multiplexing audio inputs, supplementary information and service data into a common data stream for Digital Audio Broadcasting (DAB) – including DAB Classic, DAB+ and DMB.

DAB Multiplexer
Real-time DAB, DAB+ and DMB Audio encoding
Data service and multimedia management
Redundant operation for exceptional reliability
Remote configuration and monitoring
Detailed analysis of input and output data
Developer Edition for receiver testing

IZT DRM ContentServer

Digital Radio Multiplexer System

The IZT DRM ContentServer generates a DRM multiplex from all available audio signals and data services. Moreover, it enables multi-stream real-time audio encoding and handling of all standardized and proprietary DRM data applications.

DRM30 and DRM+Multiplexer
Real-time HE-AAC and xHE-AAC encoding
Data service and multimedia management
Redundant operation for exceptional reliability
Remote configuration and monitoring
Detailed analysis of input and output data
Developer Edition for receiver testing

IZT DAB Archive

EDI/ETI Monitoring and Logging System

The IZT DAB Archive is a comprehensive solution for quality control and long-term archiving of EDI/ETI streams. It consists of two components: The DAB Recorder records, analyses and archives a DAB ensemble while the Library Server provides a central interface between user and overall system to access monitoring information and recorded content.

Real-time monitoring of DAB ensembles
Analysis of audio and data content
Logging of the complete DAB multiplex
Long-term archiving and indexing of all content
Search and export functionality

IZT MultimediaPlayer

DAB/DRM Monitoring Software

The IZT DAB/DRM MultimediaPlayer can be used as a very powerful tool for the analysis of audio and data content, perfectly-suited for professional monitoring and archiving solutions. It supports the standard protocols for multiplex distribution (EDI, MDI) as an input signal.

Monitoring and archiving solutions
Data services
Remote access possible
Custom-tailored integrated server solutio

IZT T1000

Compact Broadcast Modulator

Modulator platform for DAB and DAB+
Playback of ETI/EDI files for factory testing
Output power selectable
Seamless switching between any combination of inputs
User-friendly intuitive web GUI
IZT DAB Content Server can be integrated
Optional integrated GNSS receiver for synchronization
